M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN

20
MOQ
M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tipo: DIN, M SERIE
Género: Hembra masculina
Nuez de acoplamiento: Latón con niquelado
Contactos: M12 3 4 5 8 12 17 Pin Conector
Manera del contacto: Tornillo
Grado de IP: IP67/IP68
Inserción de material: el pa66+gf20%
Corriente nominal: 3A a 5A
Patas: M12 3 4 5 8 12 17 Conector de escudo
Calificación impermeable: IP67, IP68
Código: Un código, código B, código C, código D, código X
material de los contactos: De cobre amarillo, oro plateado
Material exterior: PUR, PVC Opcional
actual: 1.5a, 2a, 4a, etc.
Voltaje de funcionamiento: 30V/60V/250V
Resaltar:

M12 waterproof connector IP68

,

M12 screw type connector

,

M12 DIN male female connector
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Rigoal connector(RG)
Número de modelo: Conector M12
Pago y Envío Términos
Descripción de producto
Rigoal Custom M12 Wire Connectors IP68 Waterproof Shield Male Female Plug Socket
Product Specifications
Attribute Value
Type DIN, M Series
Application Aviation, Sensor, Electrical Equipment, Industrial Automation
Gender Male/Female
Product Name M12 Molded Cable Connector
Coupling Nut/Screw Brass with Nickel Plated
Standard IEC61076-2-101
Contacts M12 3/4/5/8/12/17 Pin Connector
Contact Way Screw
IP Degree IP67/IP68
Insert Material PA66+GF20%
Rated Current 3A-5A
Certifications & Details
Certificate CE/ROHS/ISO9001/IP68
Place of Origin China
Brand Name Rigoal Connector (RG)
Model Number M12 Connector
Pins M12 3/4/5/8/12/17 Pin Shield Connector
Waterproof Rating IP67, IP68
Application Scenarios Aviation, Sensor, Electrical Equipment, Solar, Marine, LED Industrial
Code A Code, B-Code, C-Code, D-Code, X-Code
Contacts Brass, Gold Plated
Outer Material PUR, PVC Optional
Current 1.5A, 2A, 4A etc.
Operating Voltage 30V/60V/250V

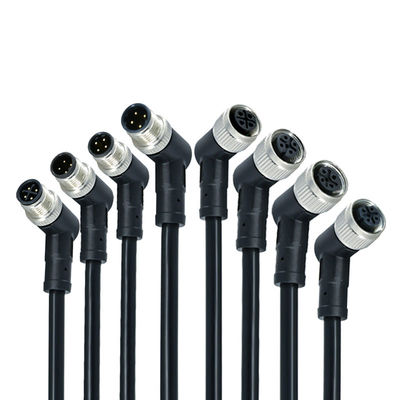

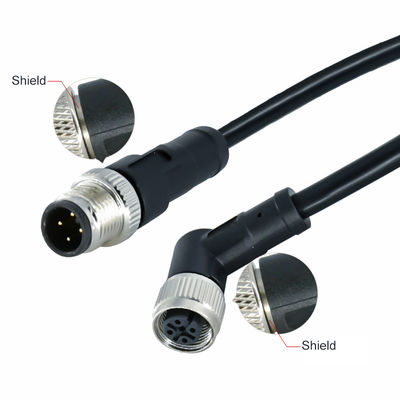

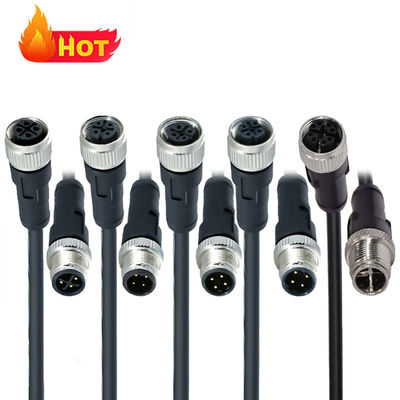

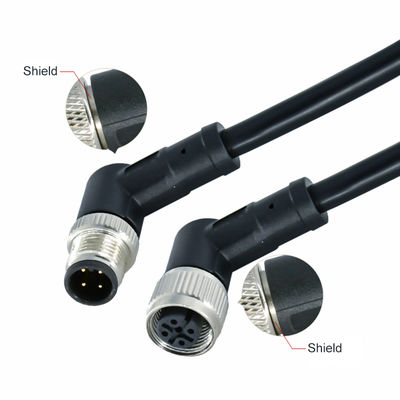

Product Images
M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 0 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 1 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 2 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 3 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 4 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 5 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 6 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 7 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 8 M12 Waterproof Connector IP68 3-17 Pin Male Female Screw Type DIN 9
